MIL-DTL-24646-3 Fuse Boxes, Feeder Distribution, Totally Enclosed, 125/250 Volts, Direct Current, Three Wire Buses, Two Wire Branches, 0-30 Ampere Fuses, Symbols 540, 541 And 542

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7


MIL-DTL-24646/3B
DIMENSIONS
SYMBOL
NO
A
B
540
5.50
11.00
541
6.50
13.00
542
8.00
16.00

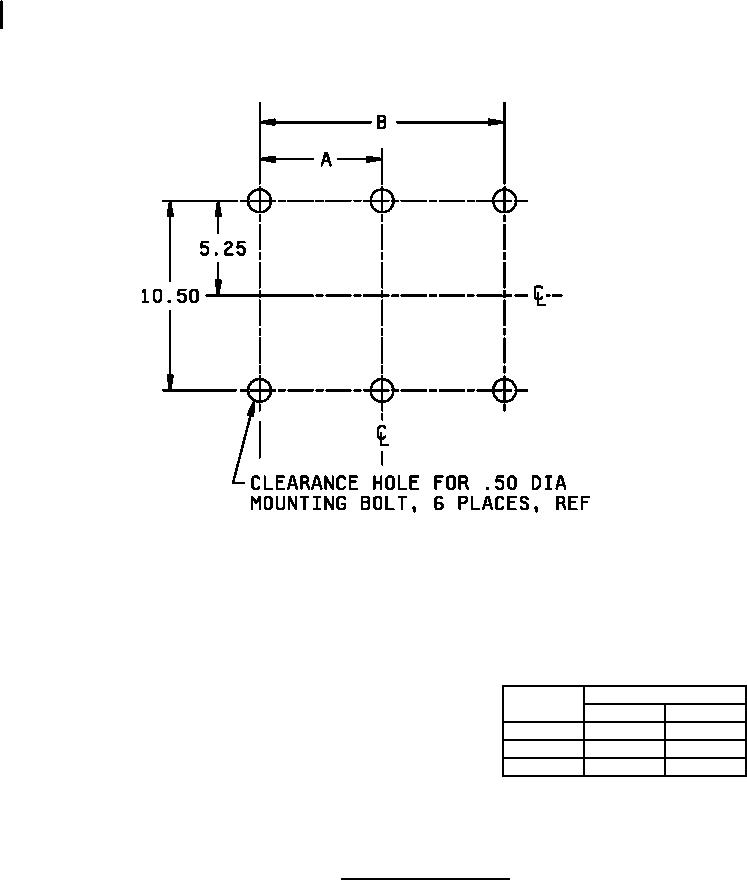

FIGURE 3. Mounting dimensions, ref.
(Symbols 540, 541, and 542)
3
