MIL-DTL-24646-3 Fuse Boxes, Feeder Distribution, Totally Enclosed, 125/250 Volts, Direct Current, Three Wire Buses, Two Wire Branches, 0-30 Ampere Fuses, Symbols 540, 541 And 542

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7


MIL-DTL-24646/3B

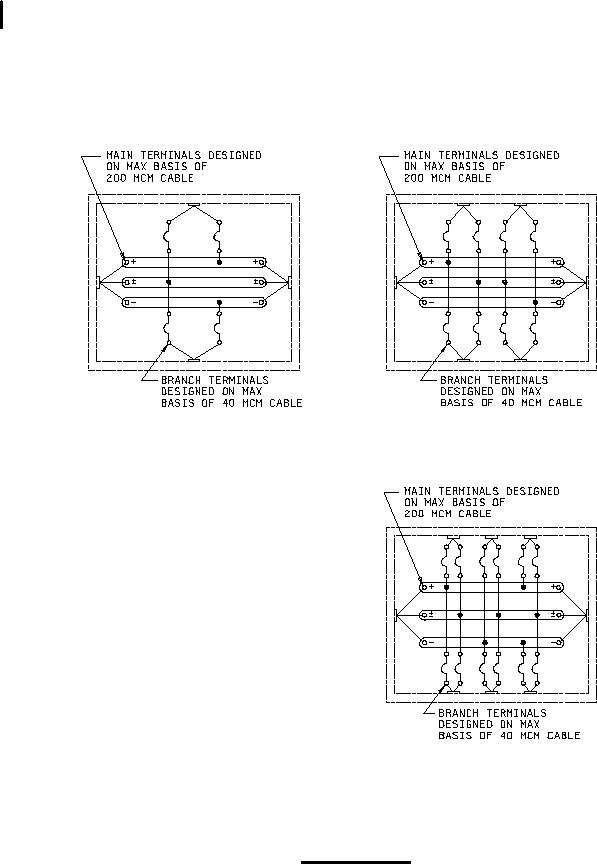

A. Two 2-wire branches
B. Four 2-wire branches
(Symbol 540)
(Symbol 541)
C. Six 2-wire branches
(Symbol 542)
FIGURE 5. Wiring diagrams. Item No. 10, 11, 12
5
