MIL-DTL-24646-3 Fuse Boxes, Feeder Distribution, Totally Enclosed, 125/250 Volts, Direct Current, Three Wire Buses, Two Wire Branches, 0-30 Ampere Fuses, Symbols 540, 541 And 542

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7


MIL-DTL-24646/3B
DIMENSIONS (MAX)
SYMBOL
NO
A
B
C
540
4.37
7.12
2.80
541
7.13
7.12
2.80
542
10.25
7.12
2.80

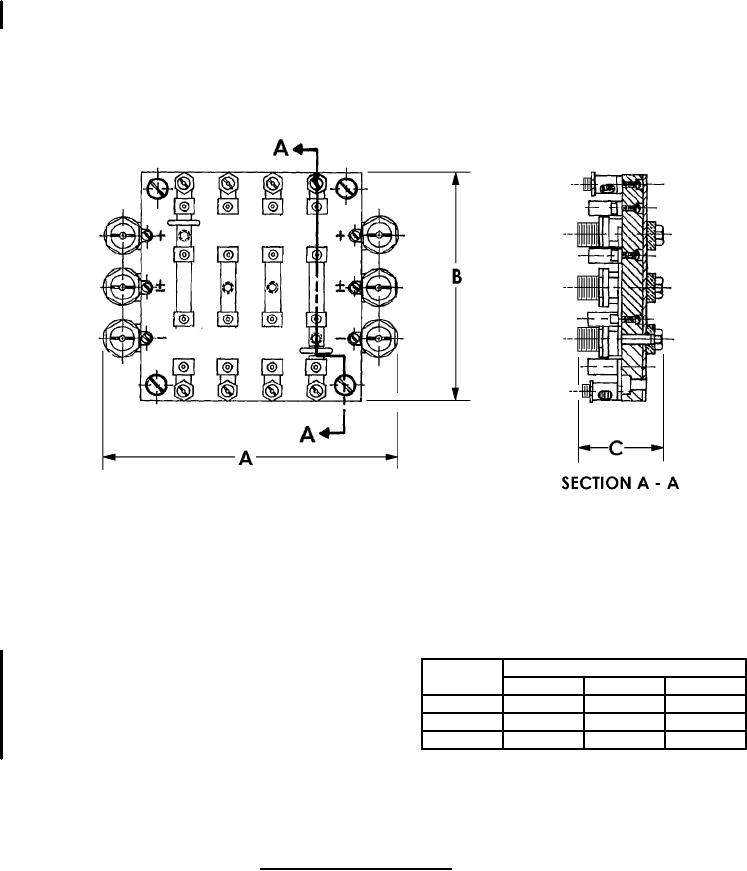

FIGURE 4. Fuse block assembly, typical. Item No. 07, 08, 09
(Symbols 540, 541 and 542)
