INCH-POUND
MIL-DTL-24646/11B
29 October 2008
SUPERSEDING
MIL-DTL-24646/11A
17 May 2002
DETAIL SPECIFICATION SHEET
FUSE BOXES, FEEDER DISTRIBUTION, WITH SWITCHES, WATERTIGHT
(3 FEET), 125 VOLTS, ALTERNATING CURRENT, SINGLE AND THREE
PHASE BUSES, SINGLE AND DOUBLE FEEDERS, SINGLE PHASE
BRANCHES, 0-30 AMPERE MIDGET FUSES, AND SNAP SWITCHES,
SYMBOLS 645, 645.1, 649.1 AND 650.1
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the product described herein
shall consist of this specification sheet and MIL-DTL-24646.

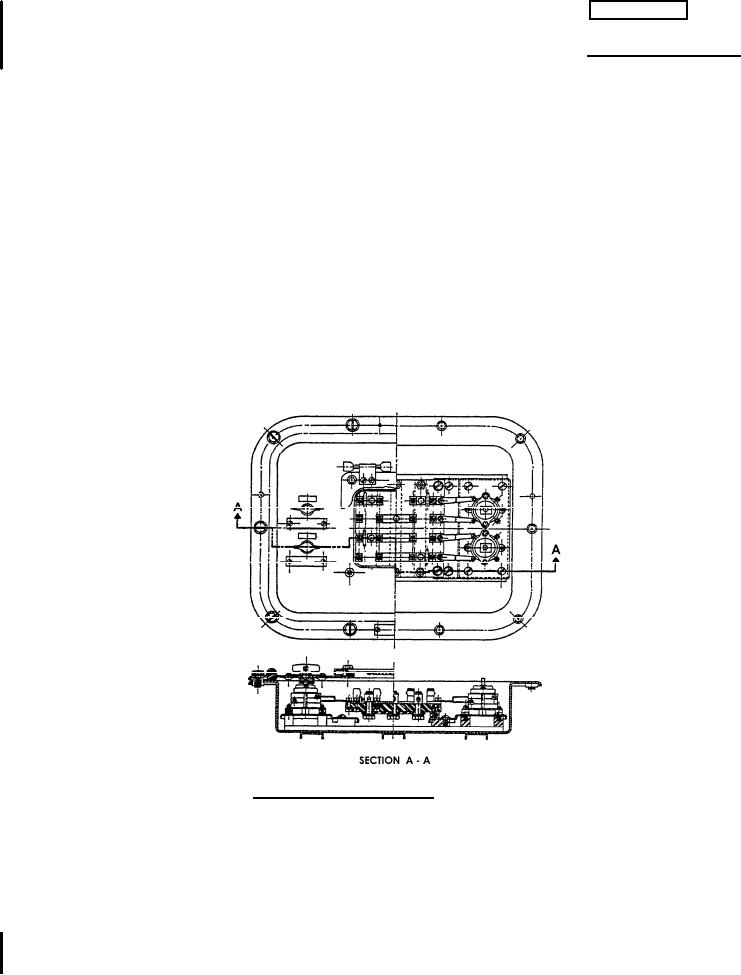

FIGURE 1. Fuse box assembly, typical. Item No. 01, 02, 03, 04
(Symbol 649.1 shown)
NOTES:
1. Dimensions are in inches.
2. Unless otherwise specified herein, tolerances shall be as follows:
Two place decimals - plus or minus 0.02.
Three place decimals - plus or minus 0.005.
AMSC N/A
FSC 5920
