MIL-DTL-24646-11 Fuse Boxes, Feeder Distribution, With Switches, Watertight \(3 Feet\), 125 Volts, Alternating Current, Single And Three Phase Buses, Single And Double Feeders, Single Phase Branches, 0-30 Ampere Midget Fuses, And Snap Switches, Symbols 645, 645.1, 649.1 And 650.1

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL-DTL-24646/11B
A. Four single-phase branches,
B. Four single-phase branches,
single feeder (Symbol 645)
Double feeder (Symbol 645.1)
C. Four single-phase branches
D Eight single-phase branches
(Symbol 649.1)
(Symbol 650.1)

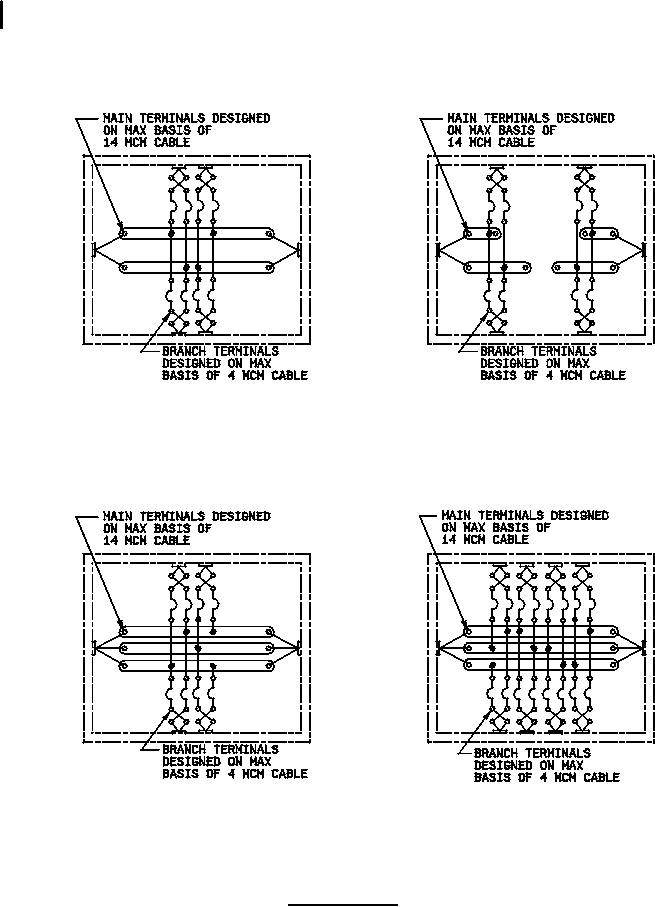

FIGURE 7. Wiring diagrams. Item No. 09, 10, 11, 12
