MIL-DTL-24646-11 Fuse Boxes, Feeder Distribution, With Switches, Watertight \(3 Feet\), 125 Volts, Alternating Current, Single And Three Phase Buses, Single And Double Feeders, Single Phase Branches, 0-30 Ampere Midget Fuses, And Snap Switches, Symbols 645, 645.1, 649.1 And 650.1

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15


MIL-DTL-24646/11B
SYMBOL
DIMENSIONS (REF)
NO
A
B
C
645
16.38
13.38
4.62
645.1
16.38
13.38
4.62
649.1
16.38
13.38
4.62
650.1
16.38
15.38
4.62

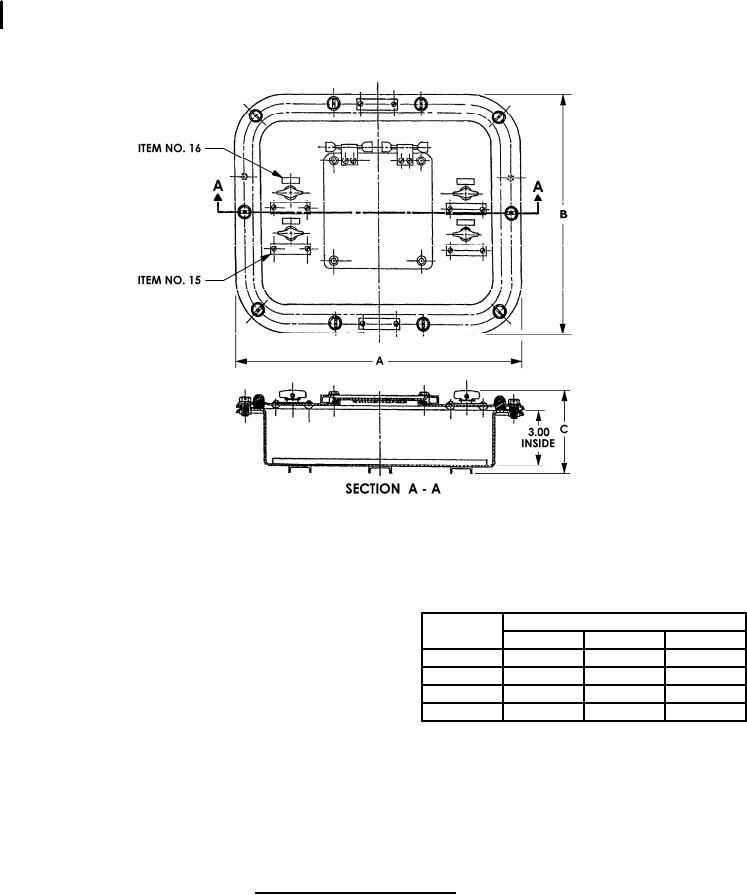

FIGURE 2. Enclosure, overall dimensions. Item No. 05, 06, 07
(Symbols 645, 645.1, 649.1, and 650.1)
